Product Description

PCS-212L is a compact size, 3-way speaker to use in vertical line array columns up to 10 units per flight frame. The mechanical design offers a vertical adjustment from 0° to 10° with a resolution of 1,0° per step.

The entire flyware is made of high quality, extreme resilient aluminum components. This 3-way system is comprised of two 12” neodymium woofers four 6,5” neodymium Low/Mid chassis and two centrally mounted 1,4” neodymium drivers with 2,5” voice coil. The drivers are connected to an accurate calculated horn. The maximum SPL of a single unit is 137dB.

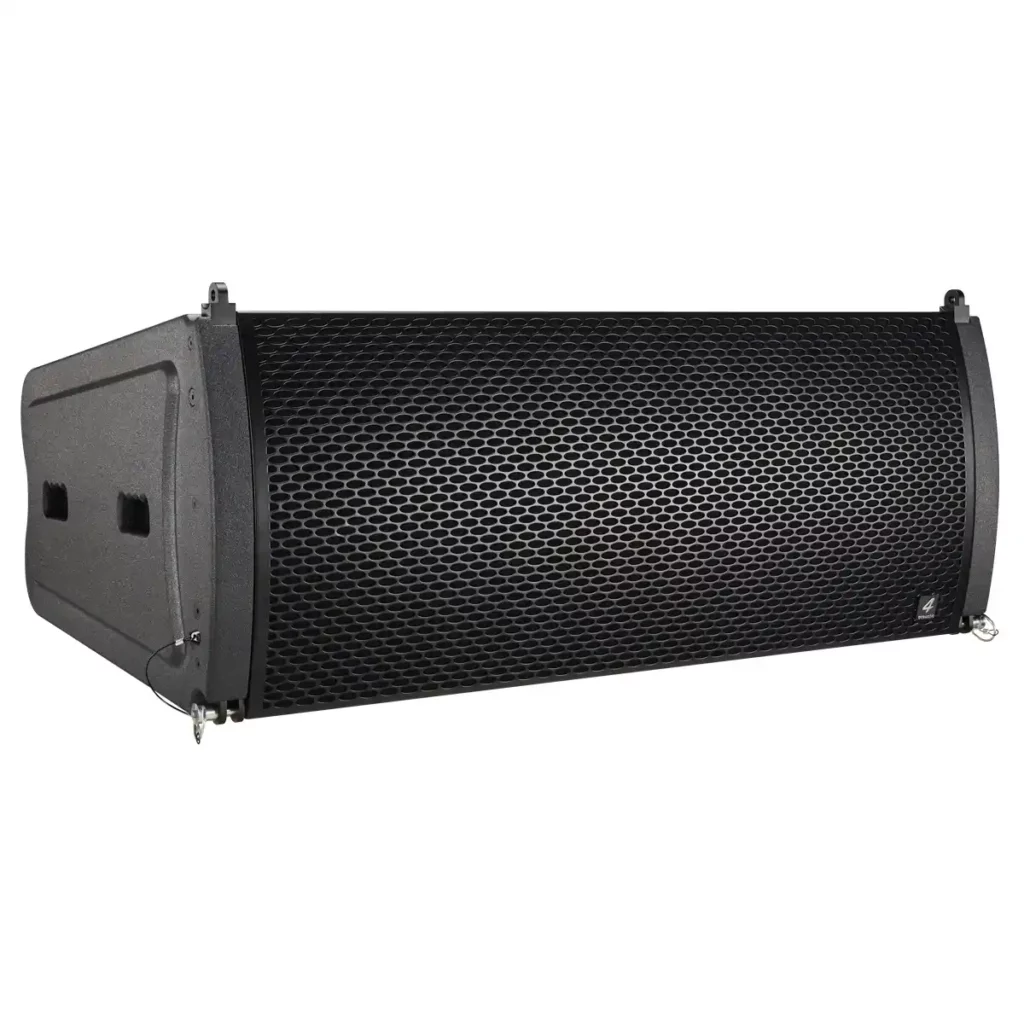

The coverage pattern is 10°x120° (v x h). The shock-proof and wheather-resistant housing is made of best quality Baltic multiplex wood and covered with a strong, black water-resistant Polyurea coating. Four integrated handles will support an easy transport and installation. The front side of the speaker is protected by a 1,5 mm strong, black metal grill covert with black color acoustic foam.

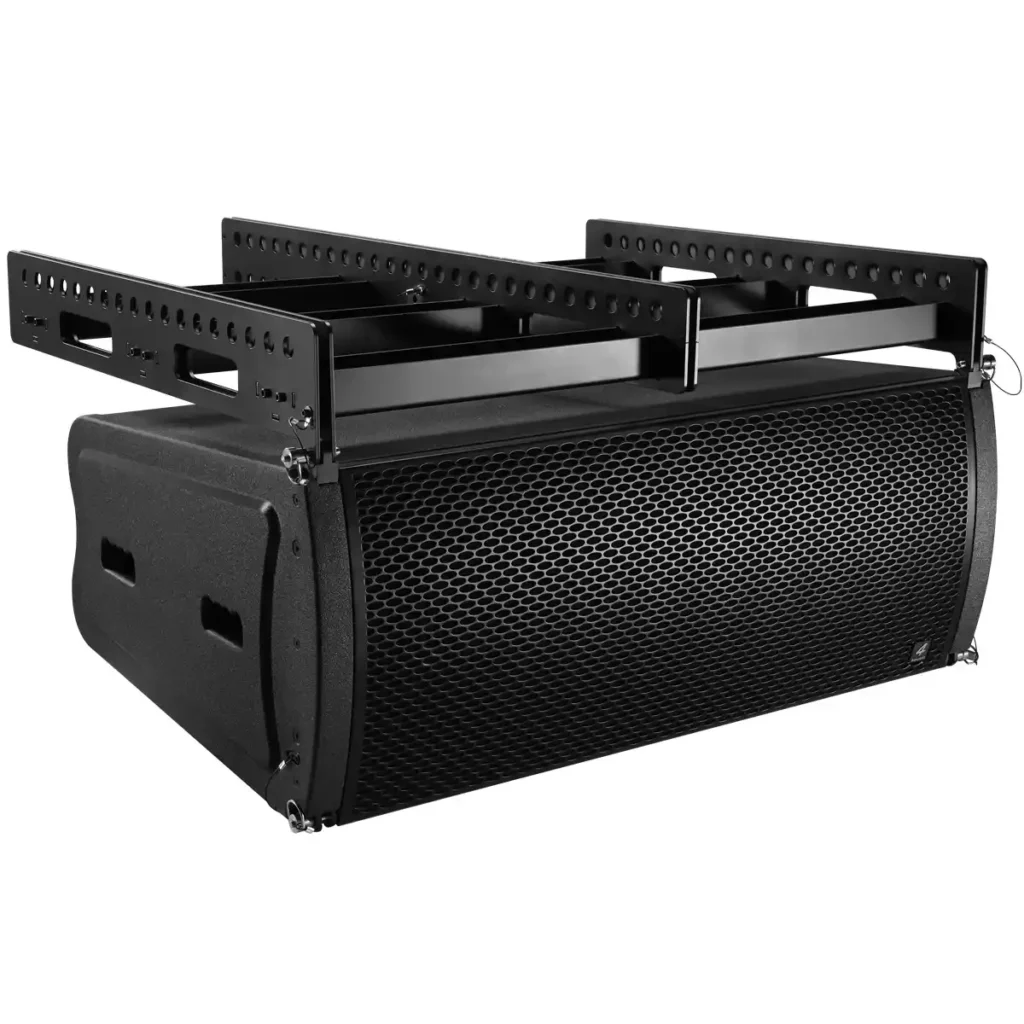

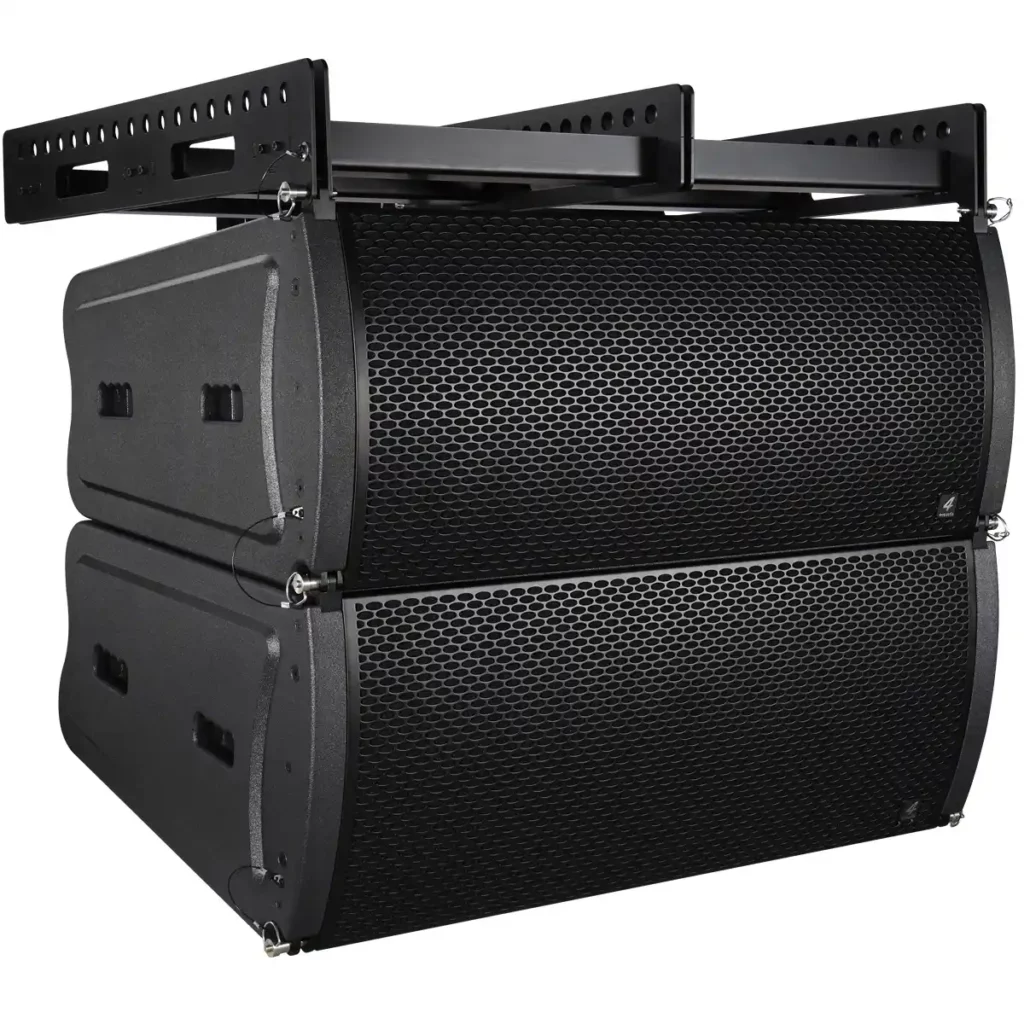

The flight frame construction allows hanging and standing installation on PCS subwoofers. The 3-way module is operated as a 2-way bi-amp system and therefore requires only two amplifier channels. The compact size guarantees a maximum of flexibility.
